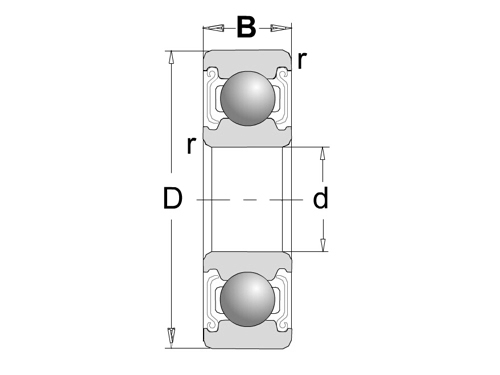

型号 | 外形尺寸(mm) | |||
d | D | B | rs min | |
68/1.5-Z | 1.5 | 4 | 2 | 0.15 | 68/1.5-ZC3 | 1.5 | 4 | 2 | 0.15 |
68/1.5-ZZ | 1.5 | 4 | 2 | 0.15 | 68/1.5-ZZC3 | 1.5 | 4 | 2 | 0.15 |
68/1.5-ZZC3P6QE6 | 1.5 | 4 | 2 | 0.15 | 68/2.5-Z | 2.5 | 6 | 2.6 | 0.08 |
68/2.5-ZC3 | 2.5 | 6 | 2.6 | 0.08 | 68/2.5-ZZ | 2.5 | 6 | 2.6 | 0.08 |
68/2.5-ZZC3 | 2.5 | 6 | 2.6 | 0.08 | 68/2.5-ZZC3P6QE6 | 2.5 | 6 | 2.6 | 0.08 |
681-Z | 1 | 3 | 1.5 | 0.05 | 681-ZC3 | 1 | 3 | 1.5 | 0.05 |
