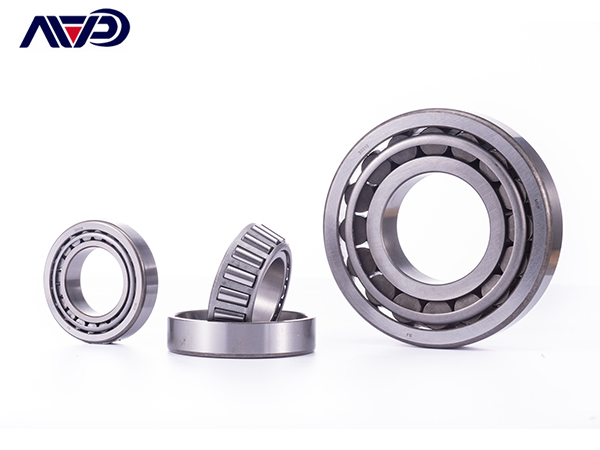

Tapered Roller Bearings

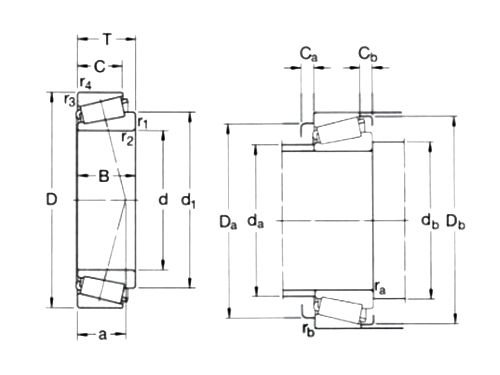

Single row metric tapered roller bearings / 320 series

Next
型号 尺寸(mm) 基本额定载荷(KN）
d1 D B dyc(Cr)
32004X/Q 20 42 15 28
320/22X 22 44 15 25.1
32005X/Q 25 47 15 31
320/28X/Q 28 52 16 36.5
32006X/Q 30 55 17 40.5
320/32X/Q 32 58 17 42.5
32008/38X/Q 38 68 19 60
32008X/Q 40 68 19 60
32008XTN9/Q 40 68 19 60
33209/Q 45 85 32 108
32010X/Q 50 80 20 69.5
32010X/QCL7CVB026 50 80 20 69.5
