Model
Inner Diameter
Outer Diameter
Width

Catalogue

Catalogue

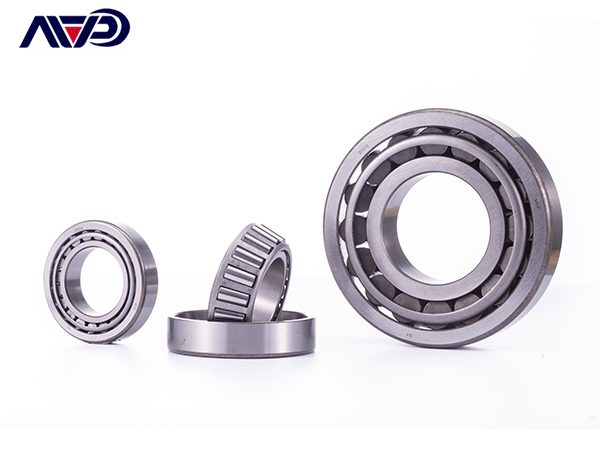

Tapered Roller Bearings

Single row metric tapered roller bearings / 313 series

Next

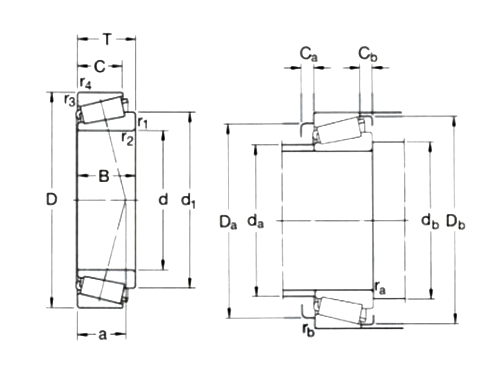

型号 尺寸(mm) 基本额定载荷(KN）
d1 D B dyc(Cr)
31305J2 25 62 18.25 38
31306J2/Q 30 72 20.75 55
31307J2/Q 35 80 22.75 71
31308J2/QCL7C 40 90 25.25 85
31309J2/QCL7C 45 100 27.25 106
31310J2/QCL7C 50 110 29.25 122
31311J2/QCL7C 55 120 31.5 140
31312J2/QCL7C 60 130 33.5 166
31313J2/QCL7C 65 140 36 190
31314J2/QCL7C 70 150 38 216
31315J2/QCL7C 75 160 40 240
31316J1/QCL7C 80 170 42.5 260

page

1
