Model
Inner Diameter
Outer Diameter
Width

Catalogue

Catalogue

Slewing bearings

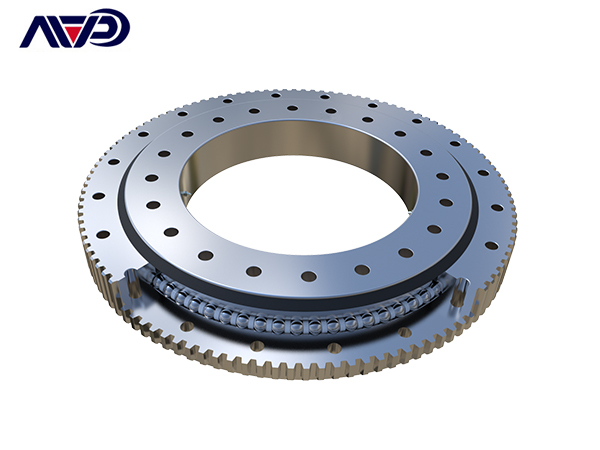

Slewing bearings / Single row four-point contact ball slewing bearing (01 series) - external gear type

Next

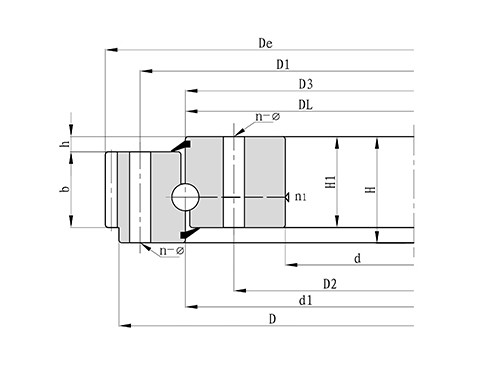

型号 外形尺寸(mm) 安孔尺寸(mm)
D d H D1
011.20.200 280 120 60 248
011.20.224 304 144 60 272
011.20.250 330 170 60 298
011.20.280 360 200 60 328
011.25.315 408 222 70 372
011.25.355 448 262 70 412
011.25.400 493 307 70 457
011.25.450 543 357 70 507
011.30.500 602 398 80 566
012.30.500 602 398 80 566
011.25.500 602 398 80 566
012.25.500 602 398 80 566

page

1

2

3

4

5

6

7
