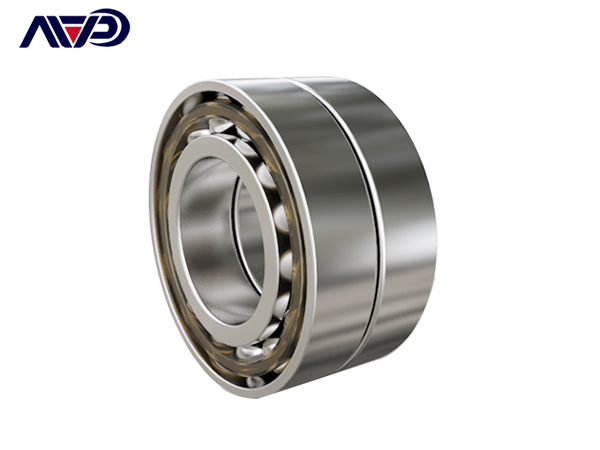

Angular contact ball bearings

High speed single train / Single row paired configuration DF series

Next

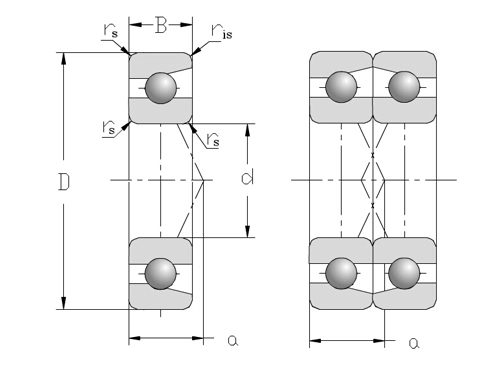

型号 主要尺寸(mm)
d D 2B rs min
7000CDF 10 26 16 0.3
7001CDF 12 28 16 0.3
7002CDF 15 32 18 0.3
7003CDF 17 35 20 0.3
7004CDF 20 42 24 0.6
7005CDF 25 47 24 0.6
7006CDF 30 55 26 1
7007CDF 35 62 28 1
7008CDF 40 68 30 1
7009CDF 45 75 32 1
7010CDF 50 80 32 1
7011CDF 55 90 36 1.1
