Model
Inner Diameter
Outer Diameter
Width

Catalogue

Catalogue

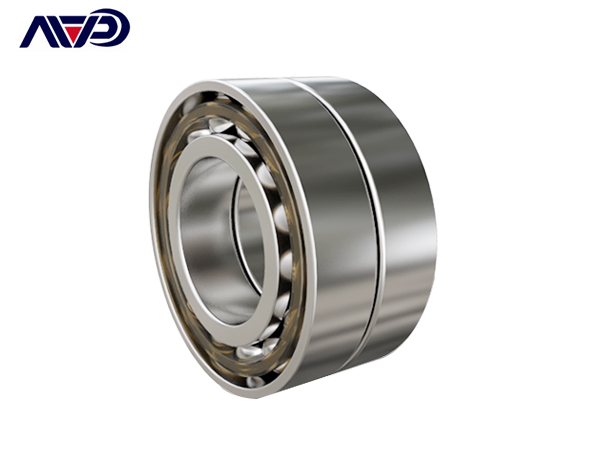

Angular contact ball bearings

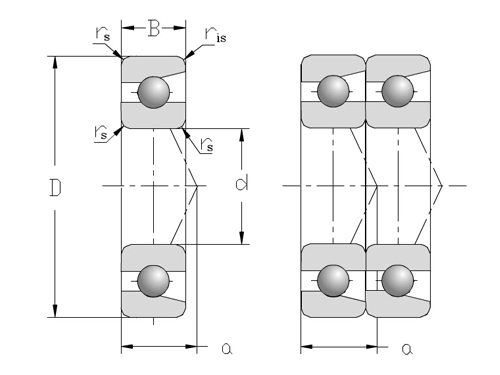

High speed single train / Single row paired configuration DT series

型号 主要尺寸(mm)
d D 2B rs min
7000CDT 10 26 16 0.3
7001CDT 12 28 16 0.3
7002CDT 15 32 18 0.3
7003CDT 17 35 20 0.3
7004CDT 20 42 24 0.6
7005CDT 25 47 24 0.6
7006CDT 30 55 26 1
7007CDT 35 62 28 1
7008CDT 40 68 30 1
7009CDT 45 75 32 1
7010CDT 50 80 32 1
7011CDT 55 90 36 1.1
