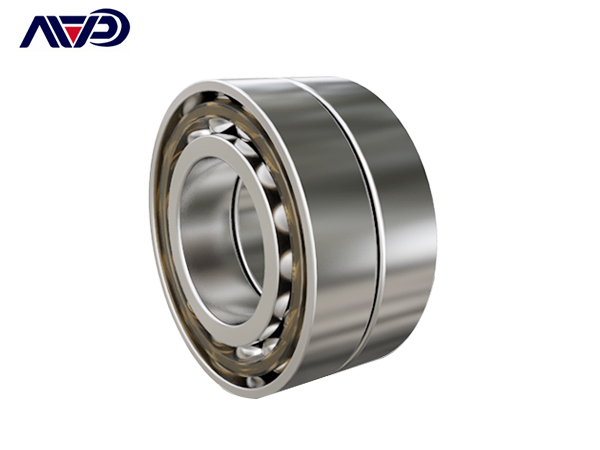

Angular contact ball bearings

single column / Single column paired configuration DB series

Next

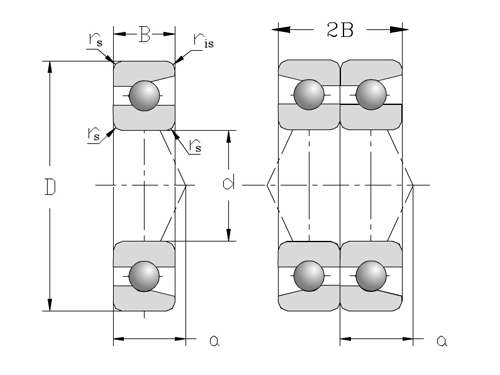

型号 主要尺寸(mm)
d D 2B rs min
7000DB 10 26 16 0.3
7001DB 12 28 16 0.3
7002DB 15 32 18 0.3
7003DB 17 35 20 0.3
7004DB 20 42 24 0.6
7005DB 25 47 24 0.6
7006DB 30 55 26 1
7007DB 35 62 28 1
7008DB 40 68 30 1
7009DB 45 75 32 1
7010DB 50 80 32 1
7011DB 55 90 36 1.1
