Slewing bearings

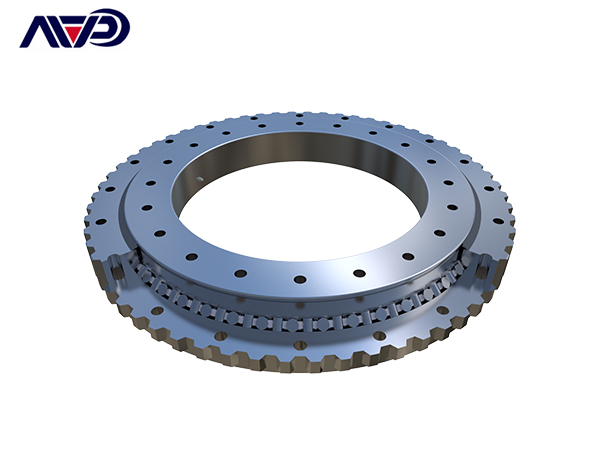

Slewing bearings / Single row crossed roller slewing bearing (11 series) - external gear type

Next

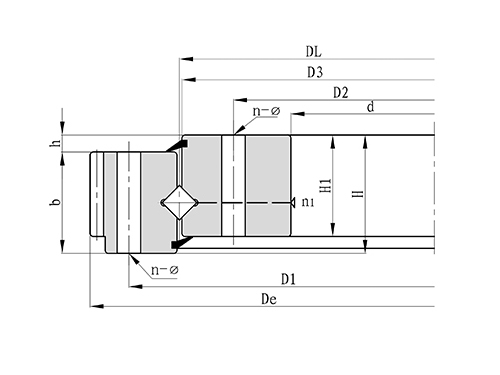

型号 外形尺寸 (mm) 安装孔尺寸(mm)
D d H D1
111.25.500 602 398 75 566
112.25.500 602 398 75 566
111.25.560 662 458 75 626
112.25.560 662 458 75 626
111.25.630 732 528 75 696
112.25.630 732 528 75 696
111.25.710 812 608 75 776
112.25.710 812 608 75 776
111.28.800 922 678 82 878
112.28.800 922 678 82 878
111.28.900 1022 778 82 978
112.28.900 1022 778 82 978

page

1

2

3
