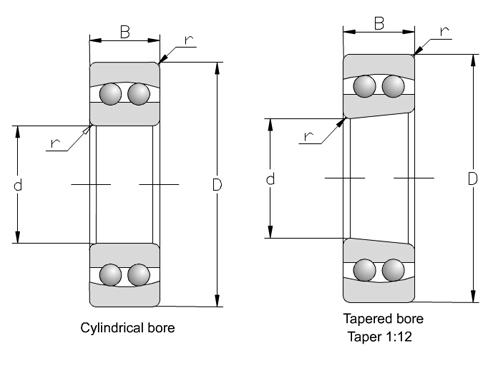

Aligning ball bearings
| 型号 |
主要尺寸(mm) |
| d |
D |
B |
rs min |
| 2300 |
10 |
35 |
17 |
0.6 |
2301 |
12 |
37 |
17 |
1 |
| 2302 |
15 |
42 |
17 |
1 |
2303 |
17 |
47 |
19 |
1 |
| 2304 |
20 |
52 |
21 |
1.1 |
2304K |
20 |
52 |
21 |
1.1 |
| 2305 |
25 |
62 |
24 |
1.1 |
2305K |
25 |
62 |
24 |
1.1 |
| 2306 |
30 |
72 |
27 |
1.1 |
2306K |
30 |
72 |
27 |
1.1 |
| 2307 |
35 |
80 |
31 |
1.5 |
2307K |
35 |
80 |
31 |
1.5 |
| 型号 |
主要尺寸(mm) |
| d |
D |
B |
rs min |
| 2308 |
40 |
90 |
33 |
1.5 |
2308K |
40 |
90 |
33 |
1.5 |
| 2309 |
45 |
100 |
36 |
1.5 |
2309K |
45 |
100 |
36 |
1.5 |
| 2310 |
50 |
110 |
40 |
2 |
2310K |
50 |
110 |
40 |
2 |
| 2311 |
55 |
120 |
43 |
2 |
2311K |
55 |
120 |
43 |
2 |
| 2312 |
60 |
130 |
46 |
2.1 |
2312K |
60 |
130 |
46 |
2.1 |
| 2313 |
65 |
140 |
48 |
2.1 |
2313K |
65 |
140 |
48 |
2.1 |
| 型号 |
主要尺寸(mm) |
| d |
D |
B |
rs min |
| 2314 |
70 |
150 |
51 |
2.1 |
2315 |
75 |
160 |
55 |
2.1 |
| 2315K |
75 |
160 |
55 |
2.1 |
2316 |
80 |
170 |
58 |
2.1 |
| 2316K |
80 |
170 |
58 |
2.1 |
2317 |
85 |
180 |
60 |
3 |
| 2317K |
85 |
180 |
60 |
3 |
2318 |
90 |
190 |
64 |
3 |
| 2318K |
90 |
190 |
64 |
3 |
2319 |
95 |
200 |
67 |
3 |
| 2319K |
95 |
200 |
67 |
3 |
2320 |
100 |
215 |
73 |
3 |
