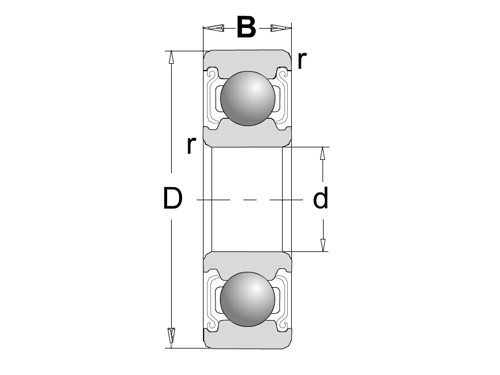

型号 | 外形尺寸(mm) | |||
d | D | B | rs min | |
60/1.5-Z | 1.5 | 6 | 3 | 0.15 | 60/1.5-ZC3 | 1.5 | 6 | 3 | 0.15 |
60/1.5-ZZ | 1.5 | 6 | 3 | 0.15 | 60/1.5-ZZC3 | 1.5 | 6 | 3 | 0.15 |
60/1.5-ZZC3P6QE6 | 1.5 | 6 | 3 | 0.15 | 60/2.5-Z | 2.5 | 8 | 4 | 0.15 |
60/2.5-ZC3 | 2.5 | 8 | 4 | 0.15 | 60/2.5-ZZ | 2.5 | 8 | 4 | 0.15 |
60/2.5-ZZC3 | 2.5 | 8 | 4 | 0.15 | 60/2.5-ZZC3P6QE6 | 2.5 | 8 | 4 | 0.15 |
602-Z | 2 | 7 | 3.5 | 0.15 | 602-ZC3 | 2 | 7 | 3.5 | 0.15 |
